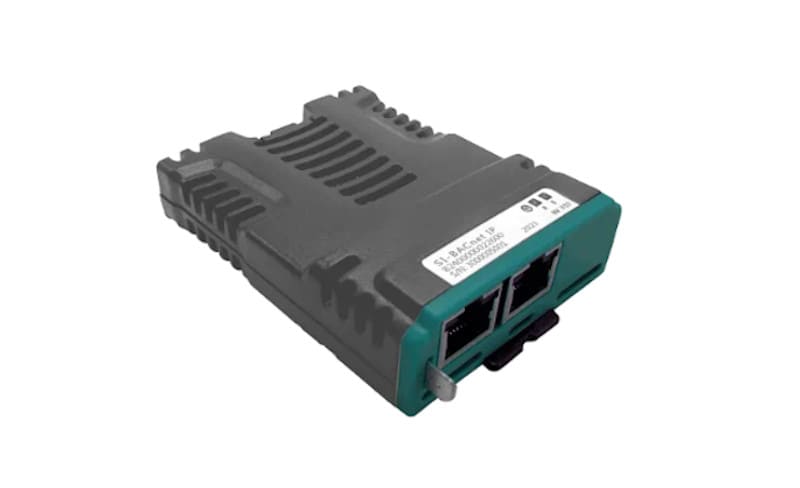

As part of the continuous development of Nidec Drives’ drive technology, the new Control Techniques SI-BACnet IP option module provides improved control and maximum efficiency for building automation systems, ensuring precise and coordinated operation and improving occupant comfort.
The Control Techniques SI-BACnet IP option module provides high-speed Ethernet-based communication to the flexible Commander C and Specialist Pump Drive F600 and HVAC Drive H300 product lines. This provides a scalable feature set and performance levels that cover a wide range of application requirements for fans, pumps and compressors. This allows for simple and convenient centralized control of multiple applications controlled by Control Techniques drives in a building. It is also worth noting that the HVAC Drive H300 comes standard with BACnet MS/TP. The advanced features of BACnet IP improve energy efficiency and contribute to the sustainable and cost-effective operation of building management systems. Control Techniques drives can control a wide range of induction and permanent magnet motors, most efficiently achieving IE5 efficiency levels. The Commander C and Specialist drive series control multiple applications in the building via the BACnet IP network, each contributing to overall energy savings and enabling a faster payback period.
Two Ethernet ports on the module and plug-and-play integration ensure robust and reliable communication, minimizing downtime and maximizing operational continuity. All drives compatible with SI-BACnet IP also come with a free 5-year warranty, so users can ensure maximum comfort for building occupants while minimizing the efforts of on-site service personnel. Nidec Drives’ scalable BACnet solution adapts to the changing needs of building automation systems and provides all the options you need to efficiently expand your network without sacrificing performance.
SI-BACnet IP enables user commands and provides motor data references to the drives. It also provides process or setpoint values to the drive’s PID controller. Drive status information is also available, and analog and digital I/O can be easily monitored and controlled. Drive errors can also be reset and drives can be commissioned using the intuitive Connect PC commissioning tool.
Key features supported include data sharing with multiple read and write commands, alarm access by value change, remote device management with password protection, and time synchronization.
