IFM AL1120 Ethernet/IP communication with Omron NJ101-9000 PLC

Programming example with Omron Sysmac Studio

This example shows how to configure and communicate the IFM AL1120 I/O module (IO-Link Master with EtherNet/IP interface) with the Omron NJ101-9000 PLC.

The LR Device software is used for parameterization and visualization of process data from IO-Link devices and IFM masters.

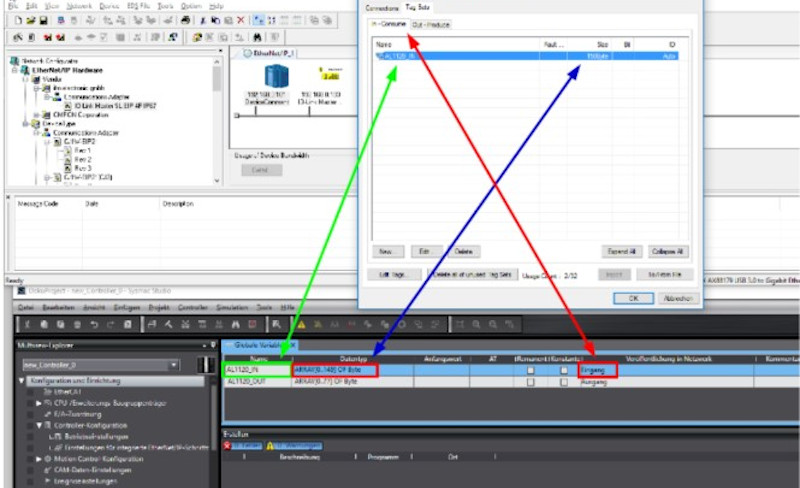

The Omron software used is “Network Configurator” with its EDS file and the Sysmac Studio software.
