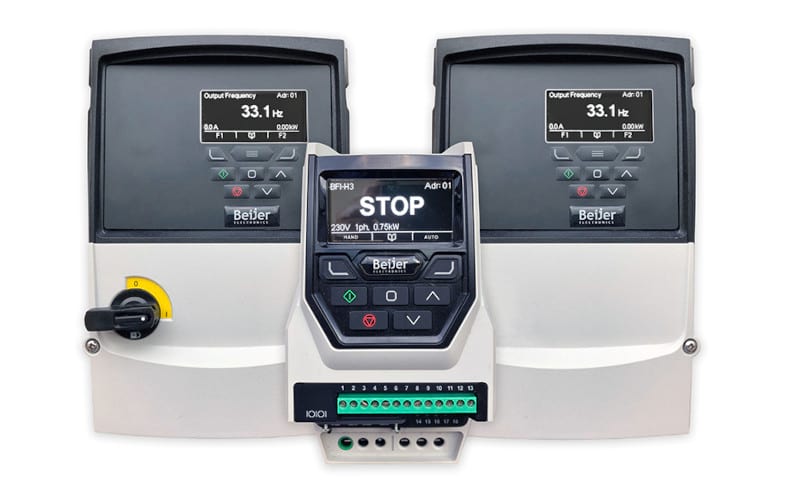

Beijer Electrinics are happy to announce that new IP20 and IP66 models and product features are now available for the IP20 and IP66 models of the BFI H3 range of HVAC inverters.
Product update BFI-H3 – IP 20 versions
- All BFI-H3 IP20 drives now comes with high definition monochrome TFT display featuring a wide viewing angle, as standard
- Multi-language support (Swedish, English, German, Italian, Spanish, French, Polish, Portuguese)
- Built-in help button for language settings, brightness level and recall of further information e.g. alarm codes
- Hand/Auto buttons are also available on IP20 drives
Previous BFI-H3 IP20 versions with LCD had the extension -SN in the type number. All IP20 drives now have the extension -MN meaning TFT display. All drives from size 4 and upwards already have TFT.
Product update BFI-H3 – IP66 versions
- UL approved for outdoor mounting
- Introduction of optional sun/snow protection
- Monochrome TFT display instead of OLED
- Multi-language support (Swedish, English, German, Italian, Spanish, French, Polish, Portuguese)
- Built-in help button for language settings, brightness level and recall of further information e.g. alarm codes
- Main switch moved
- Improved push buttons for programming
- Twin RJ45 connectors for communication without need of splitter
- Easy to wire due to the large accessible chamber and removable gland plate in metal
- Disconnection of EMC filter by removing a screw
- Price is equal or slightly decreased, up to 10% less for the smaller drives.
BFI-H3 IP66 features, power and voltage ratings
- Full conformal coating of electronic boards, meet 3S3/3C3 according to IEC 60271-3-3
- Meets standard for harmonic current according to IEC61000-3-12 without any options
- New (380-480V) 15 kW drive is frame size 3, same as 7,5 and 11 kW
- Introduction of frame size 4, (380-480V) for 18-22 kW drives
- (380-480V) 5,5 kW is now frame size 2, one size smaller than before
- IP55 (380-480V) 15-22 kW will still be available
- All IP66 can be purchased with or without main switch
- Input voltage 1 x (200-240) VAC from 0,75 to 2,2 kW
- Input voltage 3 x (380-480) VAC from 0,75 to 22 kW
- Input voltage 3 x (200-240) VAC from 0,75 to 11 kW
Learn more about the BFI H3 range of HVAC inverters here.
