The brand new sensor family cube covers a measuring range of 65 mm to 5 m with its three detection ranges. The sensors are available in two output stages – 1 Push-Pull switching output as well as 1 Push-Pull switching output with analogue output or switchable to a 2nd swichting output. The sensors are equipped with IO-Link interface version 1.1.

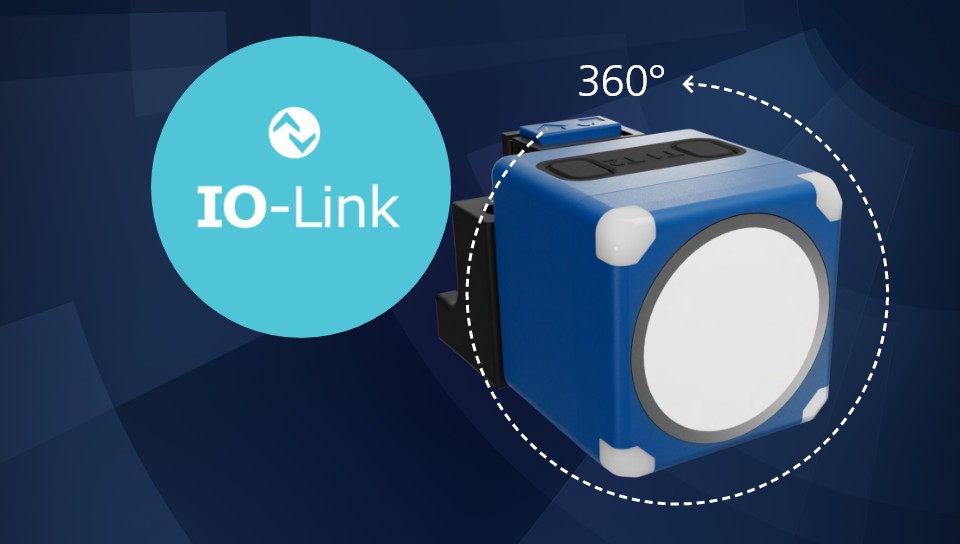

The cube can be turned in five positions thank to rotation sensor head. The sensor can be mounted quickly and easily with the QuickLock mounting bracket. The LED display is visible in any mounting positions. The convenient mounting allows flexible use in numerous applications.
Highlights
- Cubic miniature housing: 40 mm x 40 mm x 40 mm
- Sensor head mountable in 5 positions
- Easily readable LED display in any mounting position
- Convenient QuickLock mounting bracket
- microsonic Teach-in using buttons T1 and T2
- 3 measuring ranges: 600 mm, 2,000 mm und 5,000 mm
- 1 Push-Pull switching output + IO-Link
- 1 Push-Pull switching output + IO-Link and 1 analogue output or switchable to 2nd switching output
- IO-Link version 1.1
- 5-pin M12 initiator plug
