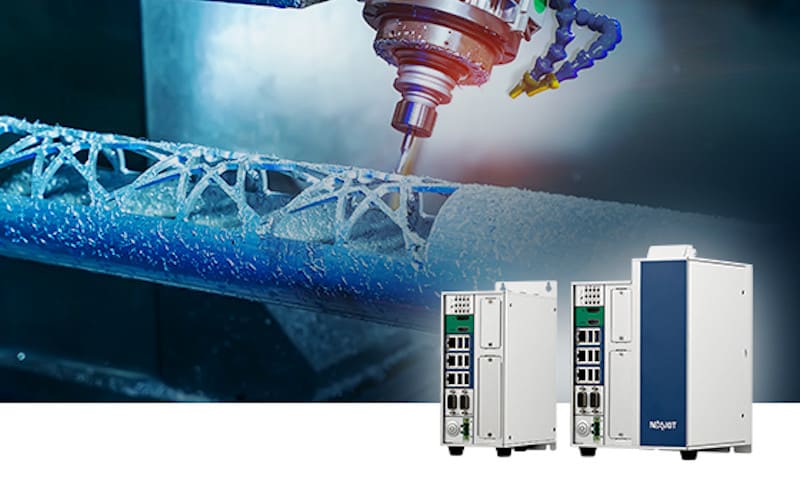

New Nexcom Automation Industrial Computer NIFE 210 series is a fanless factory automation DIN-rail system powered by the Intel® Celeron® processor J6413 (Elkhart Lake) with fieldbus expansion capabilities, and an all-front I/O interface. Among its notable value-added features are three Ethernet ports, two COM ports with isolation, a PCIe x4 expansion slot, and the ComboStorage solution, which combines a 2.5″ SSD and a Micro SD card in a single module. NIFE 210 series is designed for industrial environments and is compliant with EN61000-6-2, and EN61000-6-4 to ensure the reliability and safety of industrial equipment and systems, support 24V DC input power, and a wide operating temperature range (-10~60 °C/ 14~140 °F), making it ideal for the next generation of M2M intelligent systems, serving as both a factory automation controller and a gateway.
Powerful Processor Dedicated to IoT Applications
Powered by a 1.8GHz Quad-Core Intel® Celeron® processor J6413, delivering impressive performance, the NIFE 210 series has 2.3x improvement in single-thread performance and 3.7x improvement in CPU mark rating over the previous generation NIFE 200 series (Bay Trail-D). It also leverages a dedicated offload engine with the Intel® Programmable Services Engine (Intel® PSE). This provides independent, low-DMIPs computing and low-speed I/Os for IoT applications.
Easy Maintenance and Storage Flexibility
NIFE 210 series is a fanless system with a front I/O interface that supports simple wiring, rapid deployment, and plug-and-play functionality. This makes it easy to install and maintain. In addition, the NIFE 210 series is equipped with a front-access 2.5″ HDD/SDD and supports ComboStorage (2.5″ SSD + MicroSD card). This makes it a valuable choice for various applications requiring storage redundancy and capacity expansion.
Versatile Expansion Capabilities
NIFE 210 series possess high integration and flexibility, featuring triple Ethernet ports, two COM ports with isolation, optional mini-PCIe & M.2 modules and PCIe x4 expansion (only available in NIFE 210-E11). Extensive connectivity empowers the system to seamlessly connect various devices in factory automation, IoT, and communication applications, making NIFE 210 series a reliable choice for a diverse range of industrial applications.
Main Features
- Onboard Intel® Celeron® processor J6413 Quad Core 1.8GHz
- 1 x DP++ and 1 x HDMI for dual independent display support
- 1 x Intel® 2,5GbE LAN port, support WoL & PXE
- 2 x Marvell PHY GbE LAN ports, support WoL
- 2 x RS232/422/485 with auto-flow control and 2.5KV isolation protection
- 2 x USB 3.0, 4 x USB 2.0
- 1 x Front access 2.5” SATA HDD/SSD tray, support ComboStorage (2.5” SSD + MicroSD card)
- 2 x mini-PCIe socket support optional modules and mSATA device
- 1 x M.2 3042/3052 Key B socket
- TPM 2.0 onboard
- PCIe x4 expansion (only NIFE 210-E11)
- Support +24VDC input, support ATX power mode
