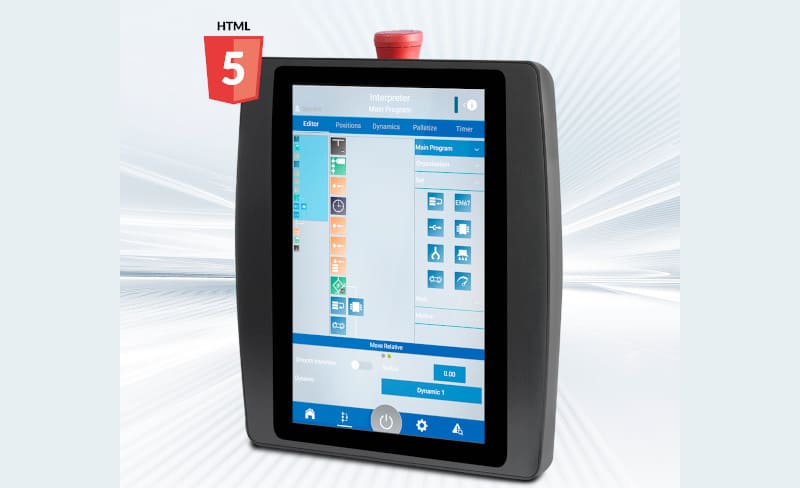

SIGMATEK’s new mobile multi-touch panel HGT 1054 features a projected capacitive 10.1″ TFT touch display (WXGA 800 x 1280 pixels). Thanks to the powerful x86 Intel Atom® dual-core processor, 4 GB DDR4 RAM and 32 GB eMMC, in addition to storage, the Web HMI is ideal for demanding applications with HTML5 visualization. The handheld operating device combines powerful performance with intuitive usability and a maximum user experience.
The OPC UA-enabled panel allows you to operate, test and maintain machines, systems and robots directly on site. The integrated emergency stop and enabling button safety elements ensure the necessary safety for man and machine. Gigabit Ethernet and USB 2.0 Type A interface are standard.
The wired mobile HMI with protection class IP54 is ergonomically designed to fit comfortably in your hand. It weighs only 1,300 g and allows you to work without fatigue.
Visualizations are easily created with the HMI tool LASAL SCREEN and the web-based LASAL VISUDesigner. For this purpose, prefabricated design templates as well as versatile controls, graphics and design elements are available. Using current web technologies HTML5, CSS3 and JavaScript, hardware independent visualizations can be easily configured in VISUDesigner. Scalable Vector Graphics (.svg) can also be implemented.
