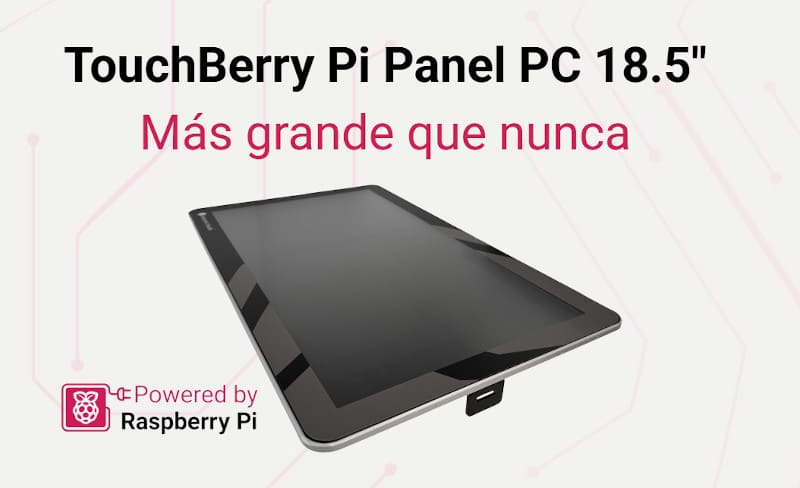

Industrial Shields introduces the TouchBerry Pi Panel PC 18.5”, a powerful and versatile solution that integrates the processing power of Raspberry Pi with a capacitive touchscreen of 18.5” in Full HD format (1980×1080 pixels).
This launch responds to the growing demand for large-format Human-Machine Interfaces (HMI) for visualization and control of operations, reinforcing the company’s position in the Open Source hardware-based automation market.
Thanks to its robust design and optimized interface, the TouchBerry Pi allows for efficient and seamless management, providing an all-in-one solution for environments where data interaction is essential.
Enhanced Power and Flexibility
The 18.5” Panel PC stands out for its large screen, robust hardware, and ability to interact with inputs and outputs using Bash and Python scripts. This combination allows each automation project to be customized with maximum flexibility and efficiency.
“The 18.5” Panel PC reinforces our commitment to high-performance Open Source solutions. Its large screen and power make it an ideal option for applications where visualization and control make the difference.”
Ramon Boncompte, Sales Director at Industrial Shields.
Technical Specifications
• Processor: Raspberry Pi.
• Operating system: Linux.
• Screen: 18.5″ capacitive, Full HD (1980×1080), IPS TFT, 900 nits.
• 10X Inputs and outputs:
o 3 digital inputs.
o 2 configurable analog inputs (0-10 Vdc or 4-20 mA).
o 5 digital outputs.
• Communications: Ethernet, USB (x4), I2C, SPI, Wi-Fi, Bluetooth, RTC. Options for RS-485, RS-232, or Serial TTL.
• Advanced protection: Integrated UPS with supercapacitors to prevent data loss during power failures and allow a controlled shutdown.
• Power supply: 12-24 Vdc with reverse polarity protection.
• Operating conditions: Temperature from 0°C to 45°C, withstands vibrations up to 50 m/s² according to IEC-60068-2-27:2008.
• Dimensions: 46.2 x 28.7 x 6.8 cm – an ideal size for visualization in demanding industrial environments.
• Protection: IP20 and IP65 optional.
