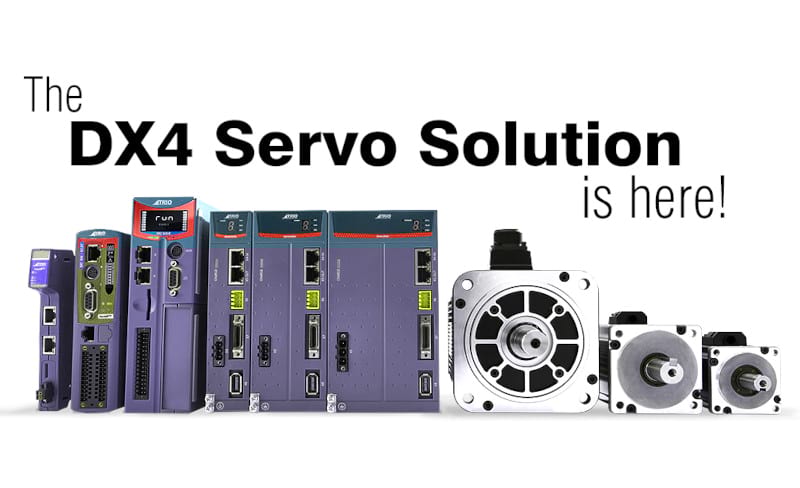

The New Servo Drive DX4 comes in 3 frame sizes with power ratings from 50W to 3kW. Designed to be matched with the MX motors and accessories it offers a high-speed, high-precision machine solution.
The DX4 is designed to work seamlessly with Trio’s EtherCAT controllers and be fully integrated into Trio’s application development tool, Motion Perfect allowing complete machine configuration from one tool; commissioning, diagnostics and programming.
With a focus on ease of use, the DX4 minimises setup time allowing you to focus on your application.
Highlights
- Drive and Motion Coordinator fully integrated into Motion Perfect
- Matched with MX motor range of low and medium inertia motors
- EtherCAT support, update rates down to 125us
- Compact size
- Zero stacking installation
- Functional Safety Dual STO (SIL3, PLe)
- 200Vac from 50W up to 3kW
- 20-bit incremental or 23-bit absolute encoder interface
- 350% overload capability
- Internal drive protection functions
- 7 digital inputs, 2 dedicated touch probe inputs for position latching
- 4 digital outputs, second encoder interface for dual encoder application
- Comprehensive tuning technology including: Auto-tuning function, adaptive vibration suppression, friction compensation
- Field upgradable firmware
MXL Servo Motor Range
The MXL range of Low Inertia High Speed Servo Motors for the DX4 Servo Drive 50W – 1kW range.
The MXL family of servo motors include solutions with absolute or incremental encoders, are suitable for application speeds up to 6000 rpm, include variants with an integrated brake.
Low inertia allows very fast response times and these motors develop a very high torque despite their small size. In combination with our servo drives, they are ideal for applications with high dynamic responses and fast and precise positioning.
Our servo drive systems can be used in a wide range of applications thanks to their high performance, available power range and compact dimensions.
MXM Servo Motor Range
The MXM range of Medium Inertia Medium Speed Servo Motors for the DX4 Servo Drive 1kW – 3kW range.
The MXM family of servo motors include solutions with absolute or incremental encoders, are suitable for application speeds up to 3000 rpm, include variants with an integrated brake.
Medium inertia allows fast response times and these motors develop a very high torque despite their small size. In combination with our servo drives, they are ideal for applications with high dynamic responses and fast and precise positioning.
Our servo drive systems can be used in a wide range of applications thanks to their high performance, available power range and compact dimensions.
