The range of ES series housings now includes a new version with raised illuminated guard and integrated buzzer.

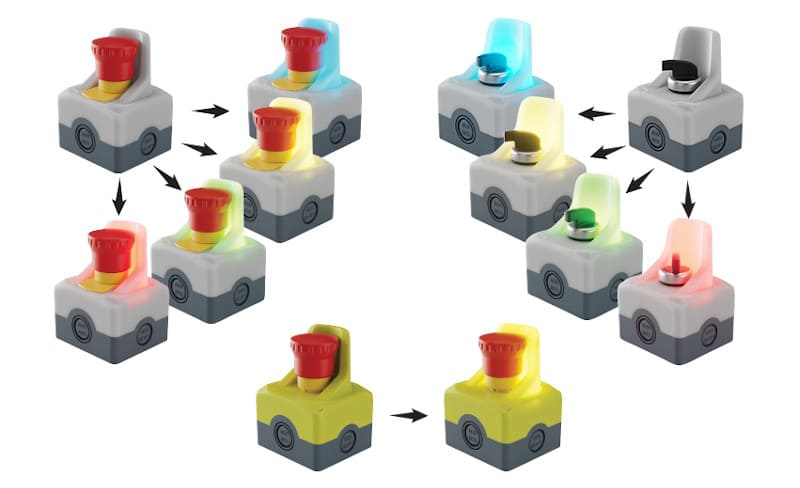

This new housing is available in the following three versions with cover:
- opaque yellow without light (no electronics)
- yellow with white LED
- white with RGB LEDs
Key features
- The upper guard protects the button from dust and dirt, prevents accidental activation and facilitates resetting of the emergency stop button
- Customisable illuminated guard with RGB LEDs increases the visibility of the housing on the machine
- Option to configure the housing with various devices, e.g. multiple-position selectors
- Integrated buzzer for acoustic signal
- Sound effect with minimum intensity of 55 dB at a distance of 1 metre acc. to lift standards EN 81-20 and EN 81-50
Further benefits
The function of the housing can be configured by the user with the internal terminal strip, enabling set-up of:
- Colours of RGB LEDs
- Steady or blinking mode for LED signalling
- Continuous or intermittent modes for acoustic signalling
