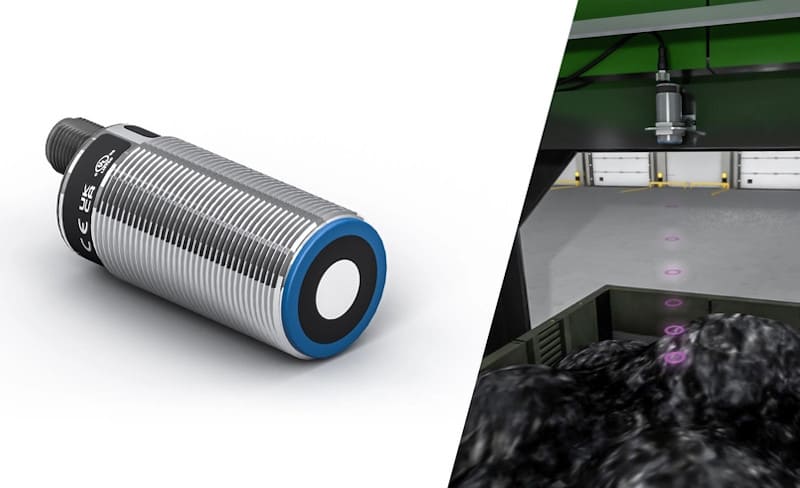

With the U30T, the wenglor sensoric group introduces a new ultrasonic sensor that is particularly easy to integrate thanks to its robust design and M30 thread format. Flexible mounting enables precise level and detection applications. The sensor can be used both as a reflective sensor and as an ultrasonically transparent light barrier.
The IO-Link interface ensures convenient parameterization, allowing the ultrasonic distance sensor to be individually adapted to the respective industrial requirements. Two modes of operation – synchronous and multiplexed operation – enable reliable use even in complex applications.
The U30T impresses with its long range and small blind spot. With an operating range of 100-1,900 mm it can be used as a reflective sensor, while with an operating range of 100-3,800 mm it can be used as an ultrasonic one-way barrier.
The new ultrasonic sensor offers two different operating modes for using multiple sensors: In auto-sync mode, up to 32 sensors can be operated simultaneously and are ideal for example for detecting wooden boards without delay.
Multiplex mode is ideal for level detection in large areas and allows up to 16 sensors to work together. The short M30 thread design allows for quick and space-saving installation. Thanks to the IP67 protection class the U30T is robust against environmental influences and parameterization via IO-Link enables quick use.
The Highlights at a Glance:
- M30 thread design for fast and space-saving installation
- Long ranges with small blind spot
- Can be used in synchronous or multiplex mode
- Reflex sensor and barrier mode
- High robustness thanks to IP67
- Parameterization via IO-Link 1.1
