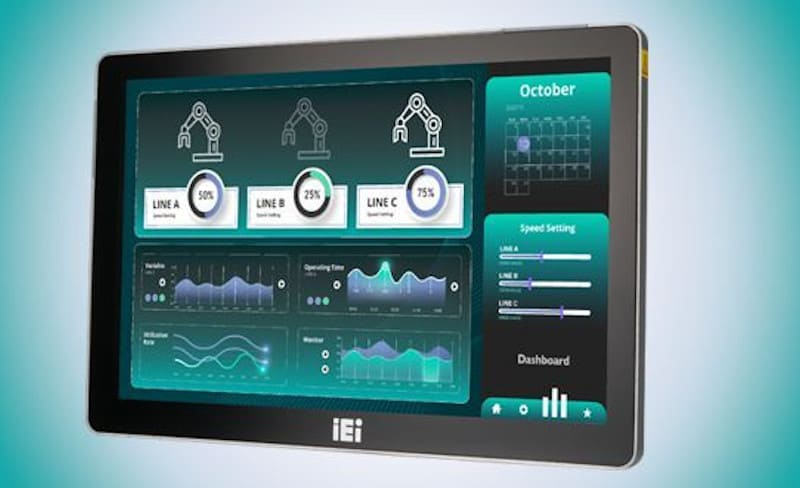

The fanless Panel PC series is currently available in 7-inch, 10-inch, 12-inch and 13-inch display sizes. Visually, the narrow front panel catches the eye, which is a comfortable 13 mm wide, so that the display area is enlarged. The PCAP display is anti-glare coated, which increases readability in bright environments and direct sunlight. An anti-UV coating protects the display from premature aging or damage from UV light. The front of the Panel PC is IP64 protected, the operating temperature is between -10°C and 50°C. A positive aspect is that the display can also be operated with wet hands or with PU-coated gloves, so that the panel PC can also be operated in a protected outdoor area in all weather conditions.
The heart of the Panel PC is an Intel Celeron J6412 processor from the Elkhart Lake generation with a basic clock speed of 2.0 GHz and 2.60 GHz in burst mode. The power loss is 10 watts. LPDDR4x RAM with 8 GB is already onboard. Two slots for M.2 M-Key SSDs serve as data storage. The network connection is established with two 2.5 GbE ports and a module for WiFi 6E/Bluetooth 5.2 can also be added via an M.2 A key slot.
One HDMI, two RS-232, two RS-232/422/485, three USB 2.0 and two USB 3.2 Gen1 are available for the connection to external devices.
The panel PCs can be attached via VESA 75/100. The input voltage is given as 12 VDC.
