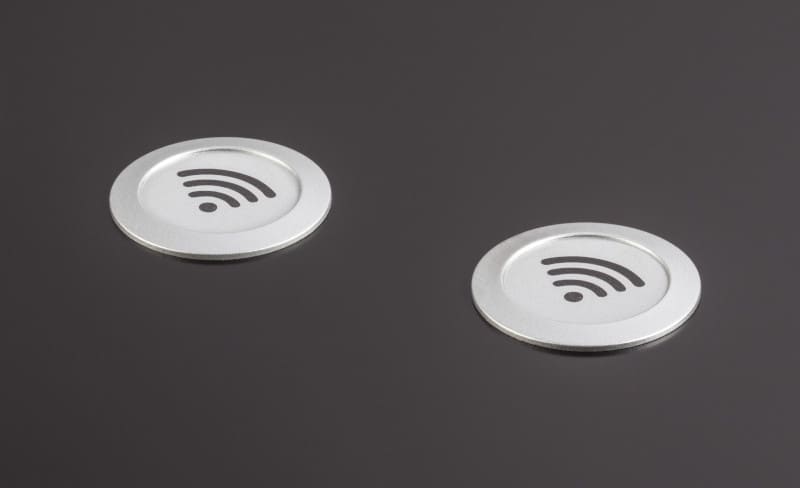

Wireless applications are becoming more and more common in the industrial sector. However, the corresponding interfaces or access points are often not available. In order to solve this issue, we introduce our WLAN interface and Wi-Fi antenna as panel mount jacks.
For systems that do not have an implemented WLAN (wireless local area network), you can use the adapter RRJ_WLU_02 from our product range. This adapter can be connected to the system via the 150cm USB A 2.0 cable. Supported systems are Windows XP, Vista, 7, 8, 8.1, 10, 11, Mac OS X or Linux-operating systems.
The WLAN interface is based on the specifications IEEE 802.11b, IEEE 802.11g and IEEE 802.11n. This enables transmission rates of up to 150 MBit/s at a distance of up to 10m at a frequency of 2.4 GHz.
The following encryption protocols are supported: 64/128 WEP, WPA/WPA2, WPA-PSK/WPA2-PSK. The compact WLAN adapter has a mounting depth of 41 mm and can be operated within a temperature range of 0 °C to +40 °C.
For systems with WLAN interface that do not have external access, the Wi-Fi antenna RRJ_WLA_01 can be used at a frequency range of 2.4 GHz and 5 GHz. The antenna, like all Wi-Fi products, conforms to IEEE 802.11 (a/b/g/n/ac) and acc. to IEC 60169-15 it can be connected via a SMA end launch jack. The panel mount jack has a mounting depth of 27 mm only and can be operated within a temperature range of -40 °C to +105 °C.
Both panel mount jacks are IP65 and are designed for a panel cut-out of Ø 22.3 mm and they fit the RONTRON-R-JUWEL range with its several design awards
