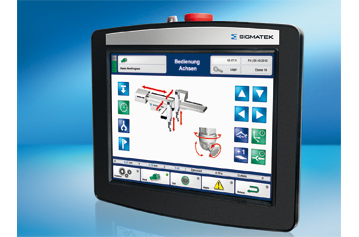

The HBG 0811 handheld panel from SIGMATEK convinces not only with its very light weight of 950 g that enables hours of fatigue-free operation, but most of all with its modern, operating system-independent “HMI-Link” technology. This makes it possible to transport all data (display, USB, power, Safety) over a single cable solution – and that up to 100 meters.
Because the operation panel does not have its own processor, it can be used for several hours without heating. The user can perfectly and flexibly tune the CPU performance to the application in the control cabinet.
On the 8.4″ touch screen with LED backlight and SVGA resolution (800 x 600 pixel),also complex visualization tasks can be implemented. The ergonomically designed grip of the HGB 0811 provides high operating comfort for both right and left-handers.
The handheld panel has all the safety-relevant elements such as a three-stage confirmation button, emergency stop as well as a key switch. Periphery devices can be connected through the USB2.0 interface. Simple screw technology allows the oil and chemical-resistant cable to be exchanged without tools.
With the compact 188 x 218 x 72 mm and “HMI-Link” technology, the HGB 0811 provides maximum flexibility in mobile machine operation.
