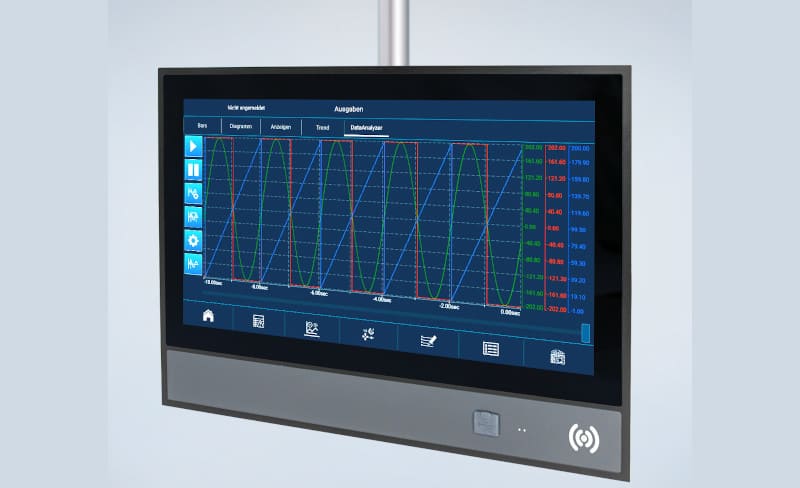

The TT 1564 multi-touch operating panel for swing arm mounting is the latest addition to SIGMATEK’s extensive HMI portfolio. It is equipped with a high-performance quad-core EDGE3 Technology processor and a 15.6-inch TFT color display in Full HD (1920 x 1080 pixels).
With 2 GB DDR4 RAM and 8 GB eMMC, there is plenty of storage space available. An RFID reader and a USB port are located directly on the front. There is also the option of adding six individual control elements on side.
Numerous standard interfaces are available for easy system integration: 2x Ethernet 100 Mbit, 3x USB host 2.0, type A (1x front), 1x USB 2.0 type Mini-B OTG and 1x microSD card holder (SD 3.0).
Like all SIGMATEK panels with a processor, the TT 1564 supports OPC UA communication. It also has two freely programmable status LEDs on the front.
Convenient operation
The fanless control panel is equipped for swing arm mount with VESA100 and impresses with its simple, high-quality design with glass front and black anodized aluminum frame. The projected capacitive touchscreen supports intuitive operation. Machines and systems can be easily operated and monitored using multi-finger gestures such as zooming, rotating and swiping.
The object-oriented engineering tool LASAL makes it easy and convenient to create complex (web) visualizations. Prefabricated design templates and a wide range of operating, graphic and design elements enable convenient configuration and project planning in the HMI tools LASAL VISUDesigner (HTML5) and LASAL SCREEN.
