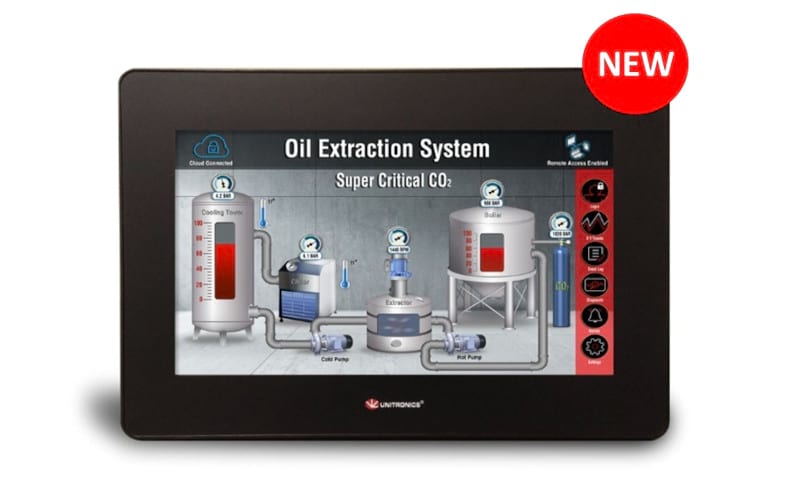

Multi-function PLC with an integrated, high quality HMI touch screen, available in a range of built-in I/O configurations. The highly compact hardware profile, PLC+HMI+I/Os built into a one unit, offers powerful control capabilities in an incredible space-saving configuration.
UniStream 10.1″ main features include Ethernet/IP, VNC, FTP, Web Server, Video + RTSP, SQL Client and more. It is backed by the most efficient programming software you have ever used.
Availability in two versions: 10″ and 10″ Pro
PLC
- Auto-tune PID, up to 64 independent loops
- Recipes & data logging via data tables & sampling
- MicroSD card – log, backup, clone & more
- Function Blocks & Structs
- Trends
HMI
- High quality touchscreenMulti-language display
- Built-in Alarm Screens
- Media support: Video, Audio and PDF viewer
- Multi-level password protection –easy and fast
COMMUNICATION
- Ethernet TCP/IP
- USB host
- Mini USB for programming
- RS485
- RS232
- Add-on ports: CANbus, RS485, RS232
PROTOCOLS
- MQTT Client
- EtherNet/IP
- MODBUS TCP
- CANopen, CANlayer2, UniCAN
- SNMP
- BACnet, KNX and M-Bus via gateway
- Message Composer for 3rd party protocols
I/O
- Expand up to 2048 I/Os
- I/O options include digital, analog, high-speed and temperature
