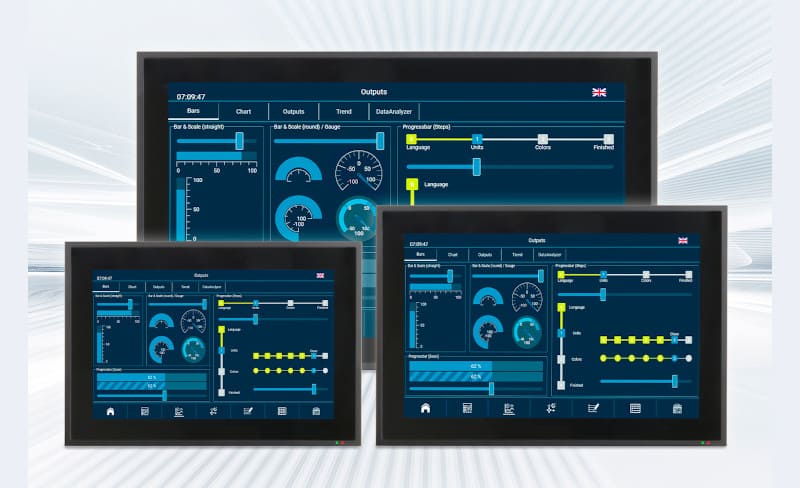

Whether for visualization, operation or monitoring – modern human-machine interfaces enable smart operating concepts that ensure a high level of user comfort. The ETT xx64 series multitouch widescreen panels from SIGMATEK are equipped with powerful EDGE3 technology processors, making them the perfect choice for modern operating concepts with HTML5 visualization.
The ETT xx64 operating panels come in a modern, high-quality design with glass front, black anodized aluminum frame and IP65 front side. The size spectrum ranges from 7 to 21.5 inches. Thanks to their low mounting depth, the HMIs are ideal for the control cabinet as well as for integration into the machine casing.
The four precisely coordinated processor cores (4x 1.6 GHz) of the EDGE3 technology processor ensure a smooth page load of (web) visualizations. OPC UA capability and numerous standard interfaces such as 2x Gigabit Ethernet (10/100/1000), 2x USB 2.0 type A, 1x USB 2.0 type Mini-B OTG and 1x microSD slot ensure easy integration of the web panels. With 2 GB DDR4 RAM and 8 GB eMMC, there is plenty of memory available. In addition, the fanless ETTs have two freely programmable status LEDs on the front.
With the web-based HMI tool LASAL VISUDesigner, even complex visualization projects can be configured and planned in a very flexible and user-friendly way. The modern HMI tool is designed as a modular system, i.e. ready-to-use design themes and controls are available, allowing maximum flexibility and shortened engineering times.
